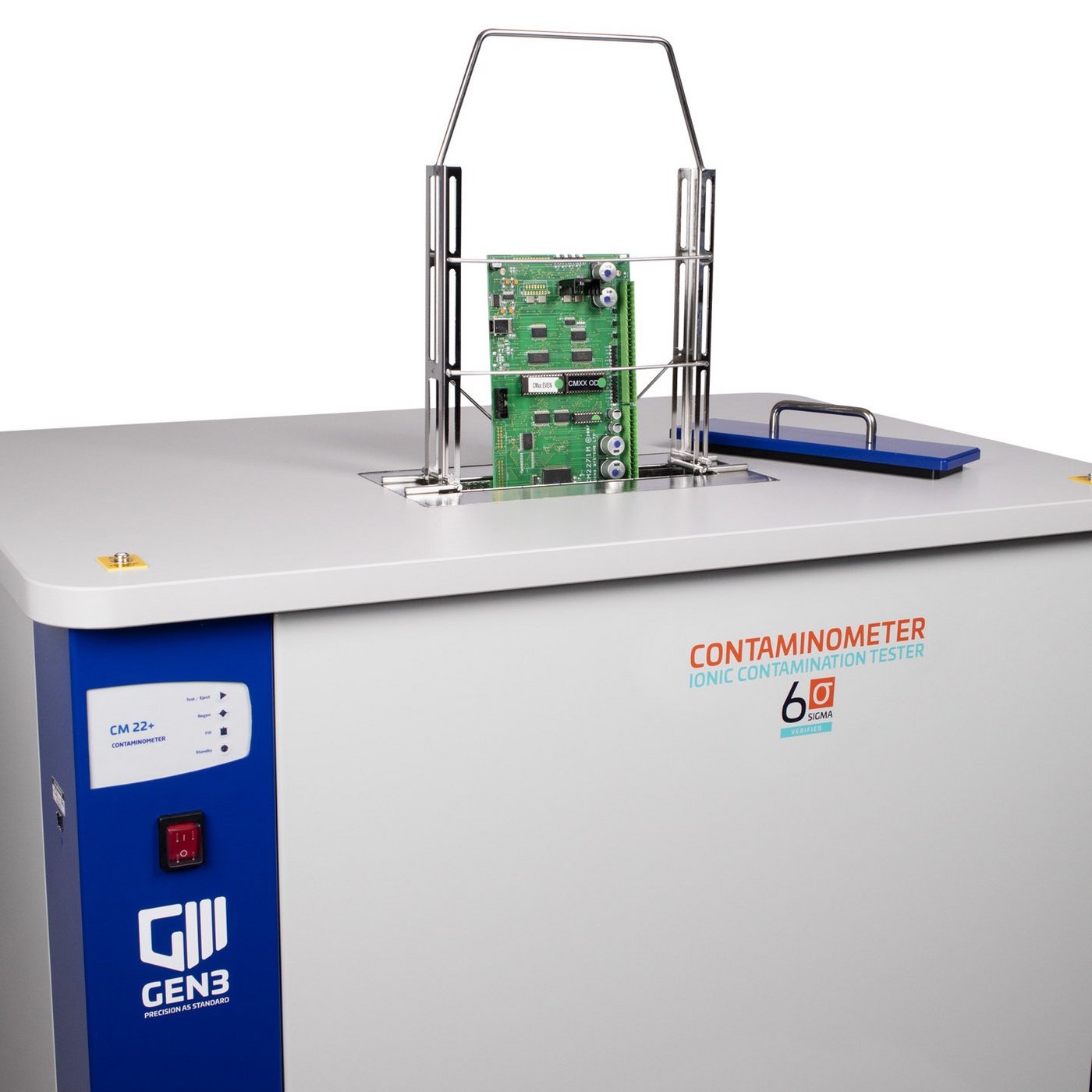

GEN3 – Contaminometer Series

Testing device for assemblies and printed circuit boards to detect ionic contamination

Ionic contaminants can negatively affect the reliability of assemblies. The residues can initiate electrochemical processes that can lead to irreversible damage and failure of the assembly. Therefore, it makes sense to check assemblies for ionic contamination during the development stage and during the manufacturing process. The instrument can be used to determine ionic contamination on PCBs and components at any time. The GEN3 contaminometer series is particularly suitable for checking printed circuit boards during and after manufacture, at incoming goods, after soldering and during final assembly. Through systematic use, sources of contamination can be traced and thus avoided.

    Product Features

    • measurement of ionic contaminations in accordance with international standards
    • highly accurate measuring system
    • different tank sizes for different board sizes
    • CM11+: practical desktop system for smaller assemblies
    • CM22: cost-effective system for assemblies with larger height
    • CM33: specially designed for even larger PCBs and assemblies. The design of the pumps and valves is adapted to the high tank volume
    • CM60: powerful pumps for a high rinsing rate, automatic filling from a storage tank, volume measuring cell for automatic surface determination
    • CM BBT: specially developed for the printed circuit board industry for large, unassembled printed circuit boards

    Application Areas

    Testing for ionic contamination on:

    • printed circuit boards
    • assemblies

    Available Versions

    Designation Version Tank Size
    CM11+ 50 % 300 x 250 x 36 mm
    CM11+ 75 % 300 x250 x 36 mm
    CM22 50 % 350 x 250 x 60 mm
    CM22 75 % 350 x 250 x 60 mm
    CM33 50 % 500 x 350 x 60 mm
    CM33 75 % 500 x 350 x 60 mm
    CM33 50 % 610 x 610 x 90 mm
    CM33 75 % 610 x 610 x 90 mm
    CM60 50 % 500 x 350 x 60 mm
    CM60 75 % 500 x 350 x 60 mm
    CM BBT 50 % 610 x 610 x 15 mm
    CM BBT 75 % 610 x 610 x 15 mm


    PDF CM11_Manual_V1.40
    PDF CM22_Manual_V1.11
    PDF CM60_Manual_V3.00
    PDF CM_SixSigma
    PDF CM33 - CM33 + Manual V1.12
    PDF TDS_CM11+Contaminometer
    PDF TDS_CM22+Contaminometer
    PDF TDS_CM33+Contaminometer
    PDF TDS_CM33L + Contaminometer
    PDF TDS_CM60 Contaminometer
    PDF TDS_CMBBT+Contaminometer
