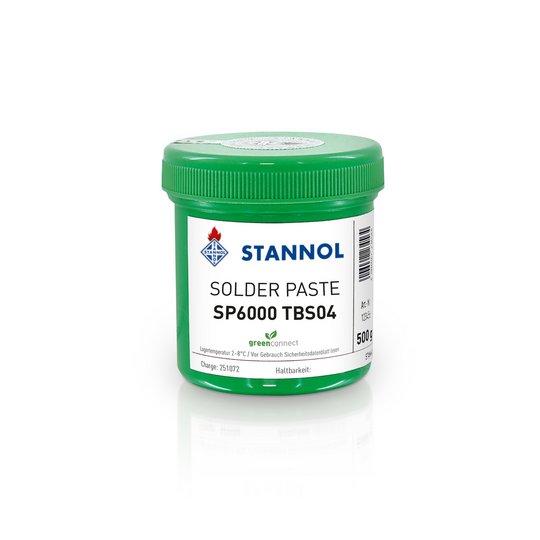

SP6000 TBS04
The solder paste SP6000 TBS04 is part of Stannol’s sustainable greenconnect product line. What makes it special: This solder paste enables about 85 percent CO2 emissions savings compared to conventional solder pastes, primarily due to the use of recycled solder. The TBS04 alloy (Bi57.6Sn42Ag0.4) is a low-melting solder alloy with a melting range of 138–140 °C.
Product Advantages
- solder powder from recycled solder
- about 85 % CO2 savings
- low melting point
- suitable for fine-pitch down to 0.4 mm
- excellent print definition after longer printer downtime
- reflow soldering possible in air or nitrogen
- excellent wetting on most surfaces
- RoHS compliant
Application
Paste printing: The solder paste was developed for stencil printing. SP6000 TBS04 with particle size type 4 (20–38 µm) is suitable for all common open and closed printing systems.
Available Delivery Forms
